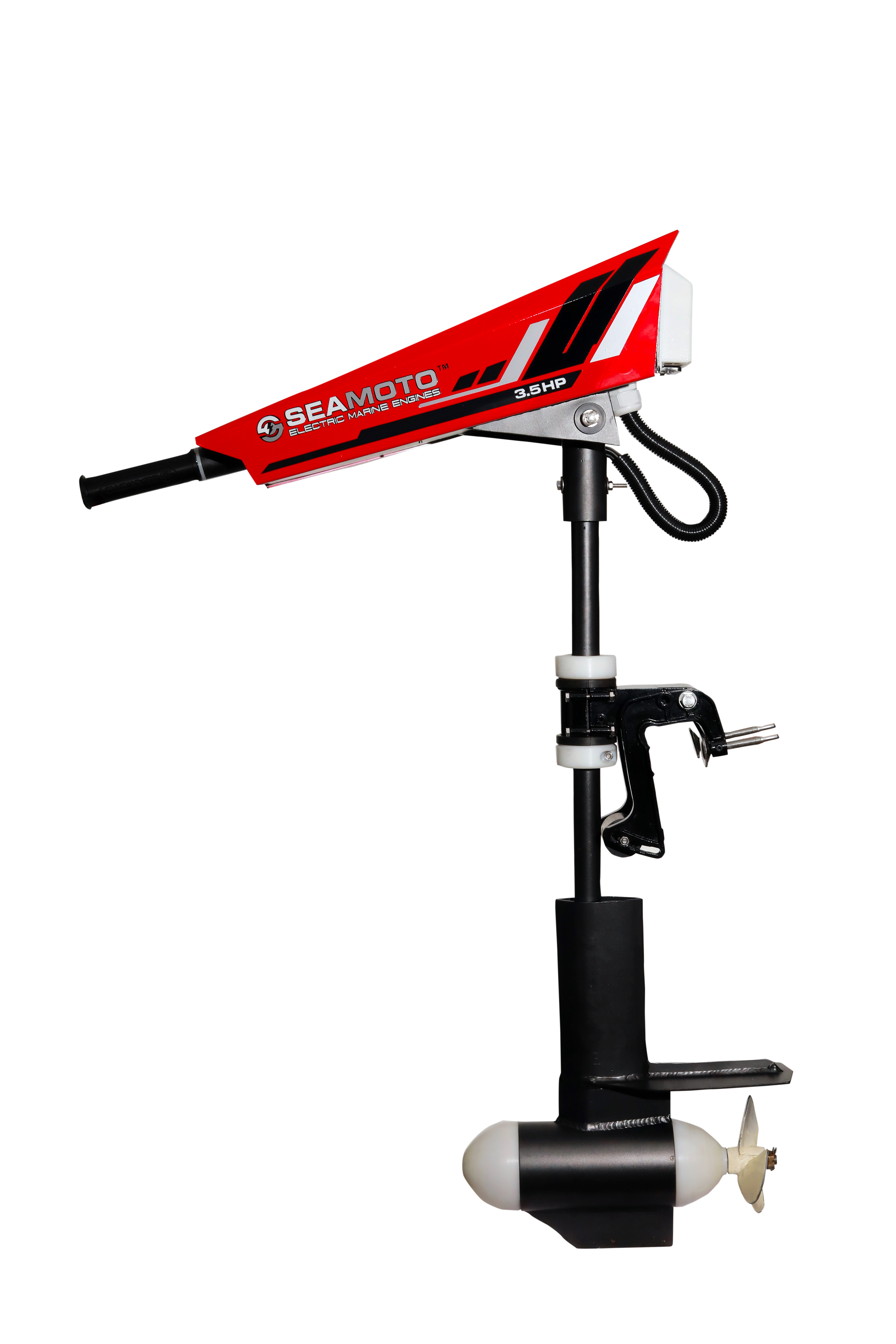

This is a compact and light weight ready to fit Electric Direct ECO Drive motor for small light weight boats. A very cute and light weight and compact propulsion unit for small FRP and wooden canoes and country boats. Best suitable for open small ferry boats, open small fishing boats, Kayaks and floating sunbath beds. It has been fully built on aluminum alloy for light weight usage and durability. This motor has an easy mountability on Kayaks .
|
Details |
Specification |
|
Motor |
PMSM Direct Drive |
|
Voltage |
50V |
|
AMPS |
12A |
|
Thrust |
45 Lbs |
|
Propeller |
2 blade alloy 7" |
|
Transom shaft height |
15" |
|
POD option |
Yes |
|
Mounting Bracket |
Transom Mount |
It is a small power house which consumes only 12A from the battery and
works on 50V LFP battery. Transom shaft length of this motor is 15 inches. It
runs 2 hours on 48V - 24Ah LFP battery at a full throttle and runs 4 hours on 50% acceleration. Battery will get fully charged in 4
hours. Battery charger is 6A and propeller is 2 blade 7” diameter.
NO POLLUTION | NO SOUND | NO VIBRATION
Heavy Duty and best in the industry Direct Drive Electric propulsion unit for mid-sized FRP and wooden boat, ferry boats, open small fishing boats and tourist boats up to 6 seater . It is a power house which takes only 22A from the battery and works on 50V LFP battery. Transom shaft length 15” (short shaft) & 20” (long shaft) options.
|
Details |
Specification |
Details |
Specification |
|
|
Motor |
PMSM Direct Drive |
Digital Display screen |
Optional |
|
|
Voltage |
50V |
Wheelhouse Remote |
Wired |
|
|
AMPS |
22A |
Wheelhouse Remote wireless |
Optional |
|
|
Thrust |
90 Lbs |
Remote Access of engine performance |
Optional |
|
|
Propeller |
3 blade alloy 7" |
Reverse & Forward option |
Yes |
|
|
Transom shaft height |
15" & 20" |
Engine Weigt |
15Kg |
|
|
POD option |
Yes |
Battery Weight and Capacity |
17Kg , 42Ah |
|
|
Mounting Bracket |
Transom Mount |
Battery Running Hours |
2 Hours on full throttle speed |
It runs for 2 hours on a 50V - 42Ah LFP battery at full throttle speed. When the speed get reduced to 50%, it runs upto 4 hours. Battery will get fully charged in 4 hours.
NO POLLUTION | NO SOUND | NO VIBRATION
Best in the class 6HP
Electric Outboard Motor works on Submersible Electric Direct Drive Technology . Best suitable for FRP boats,Wooden boats and Catamarans with below 1200kg of weight including passengers.
|
Details |
Specification |
Details |
Specification |
|
|
Motor |
PMSM Direct Drive |
Digital Display screen |
Optional |
|
|
Voltage |
96V |
Wheelhouse Remote |
Wired |
|
|
AMPS |
23A |
Wheelhouse Remote wireless |
Optional |
|
|
Thrust |
192 Lbs |
Remote Access of engine performance |
Optional |
|
|
Propeller |
3 blade alloy 7.5" |
Reverse & Forward option |
Yes |
|
|
Transom shaft height |
15" & 20" |
Engine Weigt |
17Kg |
|
|
POD option |
Yes |
Battery Weight and Capacity |
21Kg , 96V 50Ah |
|
|
Mounting Bracket |
Transom Mount |
Battery Running Hours |
2 Hours on full throttle speed |
NO POLLUTION | NO SOUND | NO VIBRATION

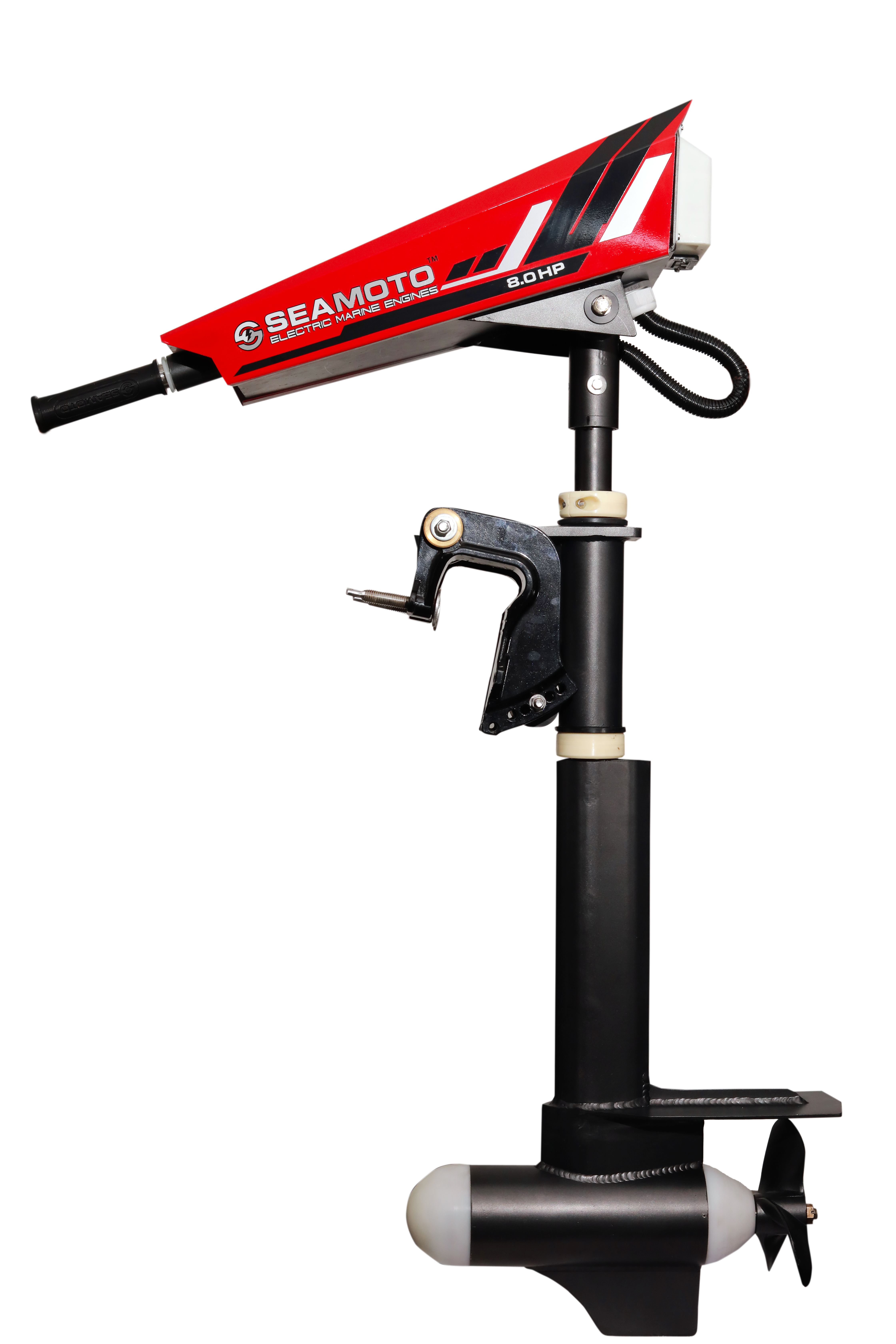

Commercial Use Seamoto
8HP Electric Propulsion
Best in the class 8HP
Electric Outboard Motor
works on Submersible Electric Direct Drive Technology for FRP boats, Wooden boats and Catamarans below 2500kg of weight including passengers
|
Details |
Specification |
Details |
Specification |
|
|
Motor |
PMSM Direct Drive |
Digital Display screen |
Optional |
|
|
Voltage |
96V |
Wheelhouse Remote |
Wired |
|
|
AMPS |
40A |
Wheelhouse Remote wireless |
Optional |
|
|
Thrust |
375 Lbs |
Remote Access of engine performance |
Optional |
|
|
Propeller |
3 blade alloy 8" |
Reverse & Forward option |
Yes |
|
|
Transom shaft height |
20" |
Engine Weigt |
20Kg |
|
|
POD option |
Yes |
Battery Weight and Capacity |
45Kg , 96V 75Ah |
|
|
Mounting Bracket |
Transom Mount |
Battery Running Hours |
2 Hours on full throttle speed |
NO POLLUTION | NO SOUND | NO VIBRATION
